Fire Montiors Y type
fire monitor, master stream or deck gun is an aimable controllable high-capacity water jet used for manual firefighting or automatic fire protection systems
Product Details

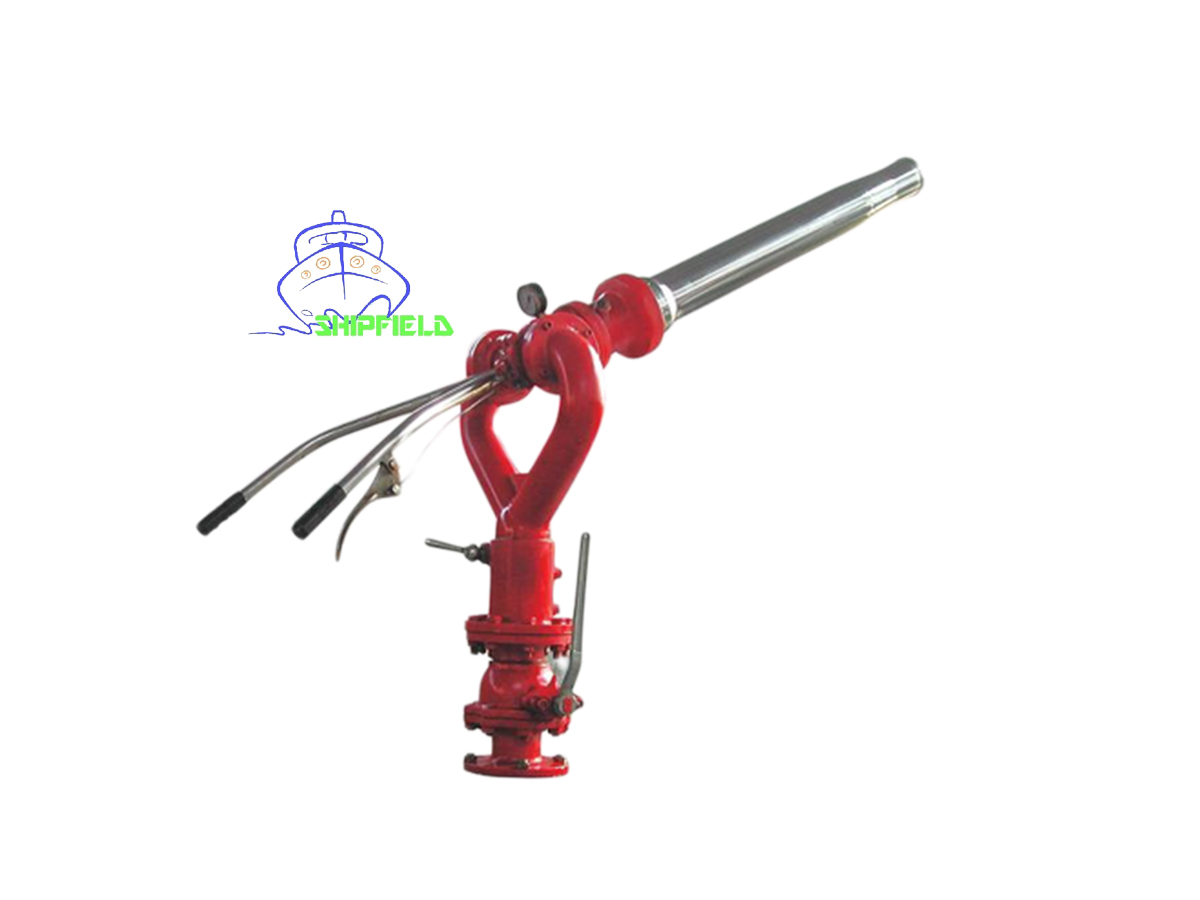

SS65 Manual Type Powder Fire Monitor
Descriptions: Produced on requirement
Effective capacity: 17Kg/s~40Kg/s
The max pressure: 16bar
Inlet: Fange DN50~DN65 PN16
Outlet: Square flange
Optional inlet flange: DN80 PN16/ANSI2'' / ANSI2½''
Powder Fire Monitor Rotation range:
Horizontal: 360° infinite
Vertical: +85°~ -75°
Weight: ~16Kg
Powder Fire Monitor Materials:
Body: Stainless Steel
Sealing: NBR
Pipe: Stainless Steel
Flange: Stainless Steel / carbon steel
Painting: Red RAL3000
The monitor can be arrested in any horizontal or vertical position
More Powder Fire Monitor can be offered,pls contact us for more details
