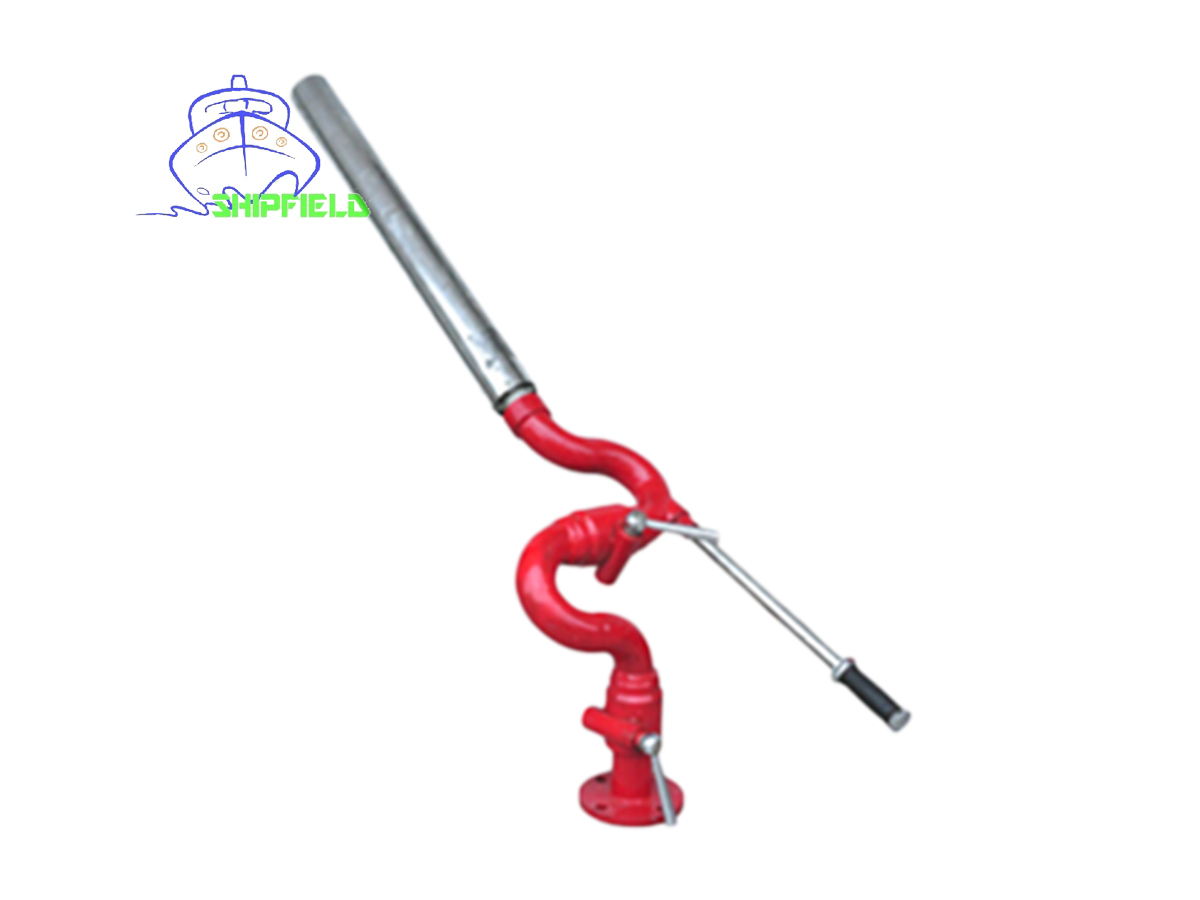

PPC series fire monitor is the new type fire fighting equipment for large and medium oil fire. It is divided into Marine and land use, Marine fire foam monitor is mainly used in the oil drilling, passenger-cargo ship, oil tanker, wharf, while land use fire foam monitor is mainly suitable for petrochemical enterprises, oil reservoir, oil field, etc. This series of fire foam monitor with 3% and 6% of the generally low multiple protein foam extinguishing agent.

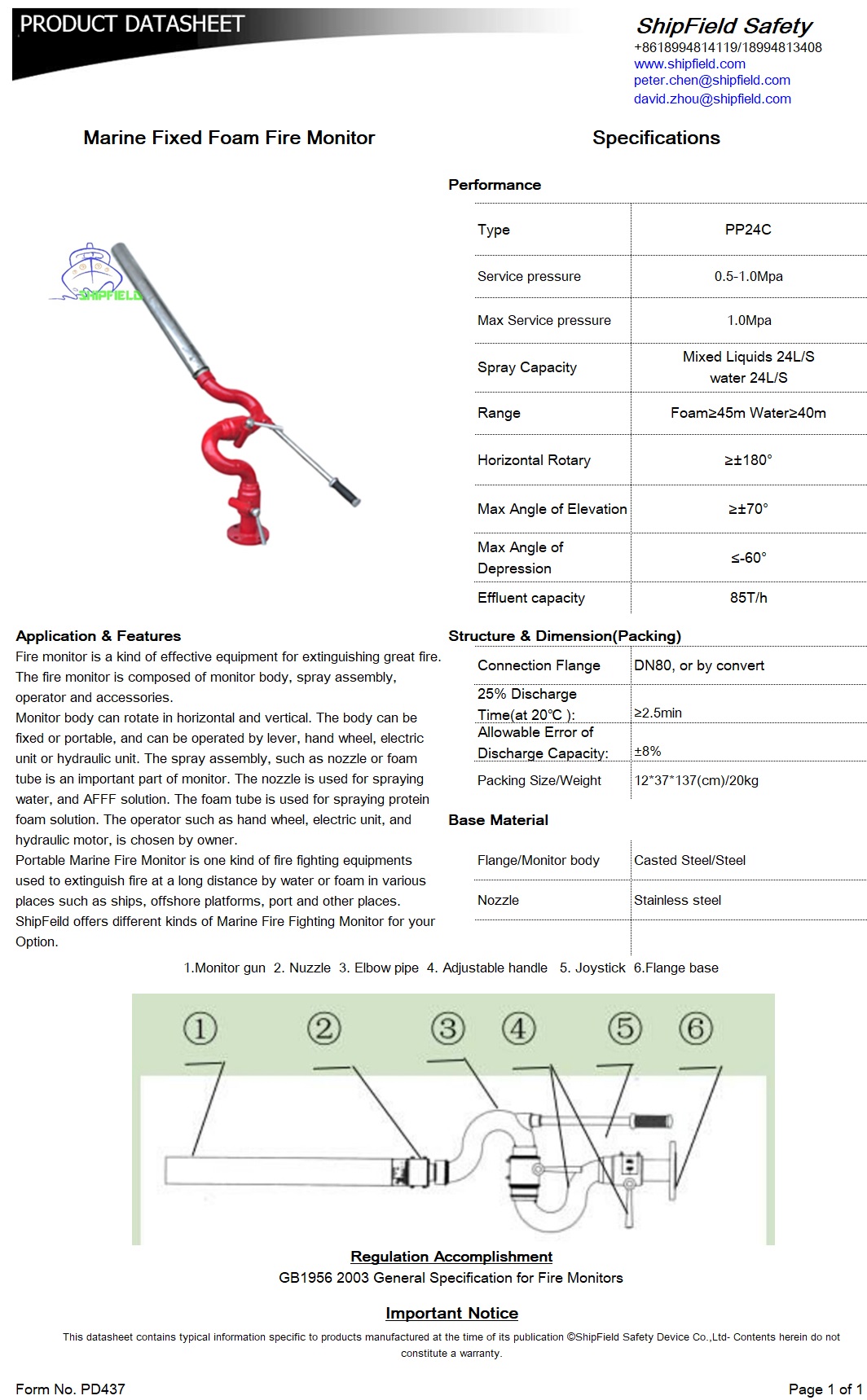

Main specification:

Structure diagram:

1.Monitor gun  2. Nuzzle  3. Elbow pipe  4. Adjustable handle   5. Joystick  6.Flange base

Charateristic of our PPC fire monitors:

With good performance, compact structure, long throw length, large coverage range, good self-locking, convenient operation characteristic, widely used in land and ship for all kinds of fire extinguishing. Fire foam monitor is equipped with operation and control of elevation angle, depression angle and horizontal angle with the joystick and adjusting handle, operate freely, with the self-locking performance. Fire foam monitor through the flange connected into fire water system, when using foam extinguishing agent, the expansion ratio shoule be not less than 6.

Use and maintenance:

When using, the operator should through the joystick and two adjusting handles to adjust the angle and range, aimed to spray goal, and lock it. should pay attention to the pressure of foam liquid which supply to the fire foam monitor is increase gradually, but cannot be exceed to the

working pressure (i.e., the inlet pressure of fire foam monitor ) , this in order to avoid pressure too high cause harm to the operator, and cause damages to the fire foam monitor.

Should be paid attention to the foam liquid which supply to fire foam monitor without impurities, so as to avoid blockage.

Can't use fire foam monitor to extinguish the electric equipment, in order to avoid electric shock.

Fire foam monitor under the different pressure, the throw length of foam liquid is different.

As far as possible to injection along with the direction of the wind.

Should keep the integrity of the fire foam monitor and keep it clean, and should be rinsed clean after every used. At the same time should pay attention to check whether the connection is fastening, sealing ring defect or not, joystick and adjusting handle are flexible or not, to ensure reliable performance when use for emergency fire fighting
