  • Immersion Suit DFB-I

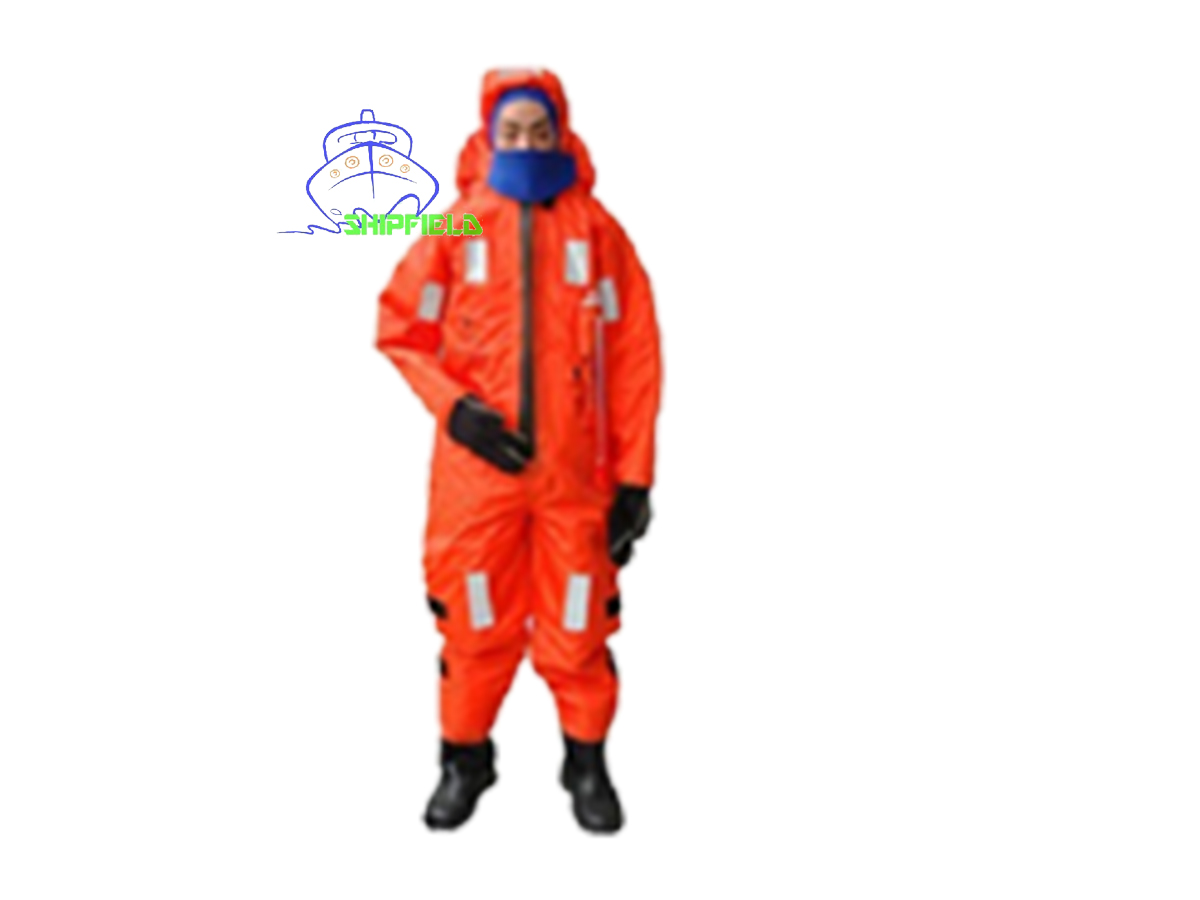

Immersion Suit DFB-I

-Overview1) Extenda person’s survival by several hour while waiting for rescue2) Quickdon at emergency case with waterproof zipper and large oversize booties andgloves built in the suit with fully clothed.3) Providethe type of L & S with height o…
Inquiry
Product Details

-Overview

1) Extend a person’s survival by several hour while waiting for rescue

2) Quick don at emergency case with waterproof zipper and large oversize booties and gloves built in the suit with fully clothed.

3) Provide the type of L & S with height of 1.75m as boundary to fit wide range of size

4) A face flap to seal water out around the neck and protection the wearer from ocean spray

-Performance

1) Water proof: Water leakage in the suit is less than 200g after the wearer floating in the water for one hour

2) Thermal keeping: Inside wearer temperature decreasing is less than 2oC after dipping in streaming water for 6 hours at temperature from 0oC ~2oC

3) Buoyancy: wearer turning with face up in 5 seconds in the water, keeping distance of 120mm with mouth and nose water

-Application field

Protects the wearers from hypothermia from immersion in cold water, after abandoning a sinking or capsized vessel, especially in the open ocean.

1) Vessels navigation at open sea,

2) Deep-sea fisherman who work in deep-water fishing grounds

-Standard

1) To Comply with MSC. 81(70) of SOLAS


Specification

Dressing time

≦2 minutes

Storage Temperature

-30℃~+65℃

Water proof

Water penetrated in is less than 200g (1 hour floated in water)

Temperature Reservation

Temperature decrease<2℃(6 hours deep in the water with -2℃~0℃,

Buoyancy Keeping

Face of wearer turned up in 5 minutes, Buoyancy loss is less than 5% in 24 hours

Note

  1. Product Inspection Standard: Requirements of 1996 Amendments to SOLAS 1974 and LSA Code and Resolution MSC.81(70)
